滾花圓身鉚螺母使兩個物料通過一個可承重的螺紋用螺栓緊密連接在一起。滾花豎紋使鉚接好的螺母防轉程度，較平滑圓柱有一定的提高。滾花圓柱鉚螺母有平頭和小沉頭等頭型，并有鋁、鐵、不銹鋼等材質的選擇。
平頭圓柱滾花鉚螺母不銹鋼開口
詳細介紹

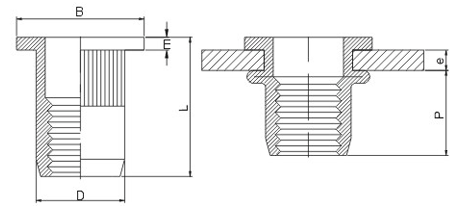

e. | | Dmax | B | E | L | P | Setting Load | Torque(N.m.) | ||
min | max | |||||||||
M3 | 0.5 | 1.5 | 5 | 4.98 | 7 | 1 | 9.3 | 5.9 | 3500 | 1.2 |
1.5 | 2.5 | 5 | 4.98 | 7 | 1 | 10.4 | 5.9 | 3500 | 1.2 | |
M4 | 0.5 | 1.5 | 6 | 5.98 | 8 | 1 | 9.8 | 6.2 | 5500 | 3 |
1.5 | 2.5 | 6 | 5.98 | 8 | 1 | 10.6 | 6 | 5500 | 3 | |
2.5 | 3.5 | 6 | 5.98 | 8 | 1 | 11.7 | 6 | 5500 | 3 | |
M5 | 0.5 | 1.5 | 7 | 6.98 | 9 | 1 | 11.8 | 8 | 8000 | 6 |
1.5 | 3 | 7 | 6.98 | 9 | 1 | 13.3 | 7.8 | 8000 | 6 | |
3 | 4 | 7 | 6.98 | 9 | 1 | 14.4 | 7.8 | 8000 | 6 | |
M6 | 0.5 | 1.5 | 9 | 8.98 | 11 | 1.5 | 13.3 | 8.7 | 13000 | 10 |
1.5 | 3 | 9 | 8.98 | 11 | 1.5 | 14.8 | 8.6 | 13000 | 10 | |
3 | 4.5 | 9 | 8.98 | 11 | 1.5 | 16.4 | 8.6 | 13000 | 10 | |
4.5 | 6 | 9 | 8.98 | 11 | 1.5 | 18.2 | 8.6 | 13000 | 10 | |
M8 | 0.5 | 1.5 | 11 | 10.98 | 14 | 1.5 | 15.3 | 10.6 | 20000 | 24 |
1.5 | 3 | 11 | 10.98 | 14 | 1.5 | 16.8 | 10.6 | 20000 | 24 | |
3 | 4.5 | 11 | 10.98 | 14 | 1.5 | 18.4 | 10.6 | 20000 | 24 | |
4.5 | 6 | 11 | 10.98 | 14 | 1.5 | 20 | 10.6 | 2000 | 24 | |
M10 | 0.5 | 1.5 | 13 | 12.98 | 16 | 2<, o:p><, /SPAN> | 19.8 | 13.9 | 22000 | 48 |
1.5 | 3 | 13 | 12.98 | 16 | 2 | 21.4 | 13.9 | 22000 | 48 | |
3 | 4.5 | 13 | 12.98 | 16 | 2 | 23 | 13.9 | 22000 | 48 | |
4.5 | 6 | 13 | 12.98 | 16 | 2 | 24.6 | 13.9 | 22000 | 48 | |
