滾花圓身鉚螺母使兩個物料通過一個可承重的螺紋用螺栓緊密連接在一起。滾花豎紋使鉚接好的螺母防轉程度，較平滑圓柱有一定的提高。滾花圓柱鉚螺母有平頭和小沉頭等頭型，并有鋁、鐵、不銹鋼等材質的選擇。
沉頭圓身滾花鉚接螺母不銹鋼開口
詳細介紹

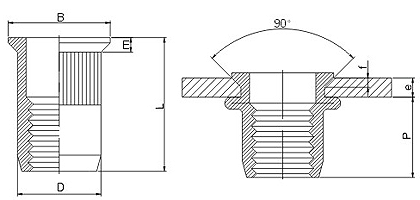

e | | Dmax | f | B | E | L | P | Setting Load | Torque(N.m.) | ||
max | |||||||||||
M3 | 1.3 | 2 | 5 | 4.98 | 0.9 | 7 | 1 | 8.8 | 5.9 | 3500 | 1.2 |
2 | 3 | 5 | 4.98 | 0.9 | 7 | 1 | 9.9 | 5.9 | 3500 | 1.2 | |
M4 | 1.3 | 2 | 6 | 5.98 | 0.9 | 8 | 1 | 9.3 | 6.2 | 5500 | 3 |
2 | 3 | 6 | 5.98 | 0.9 | 8 | 1 | 10.3 | 6.2 | 5500 | 3 | |
3 | 4 | 6 | 5.98 | 0.9 | 8 | 1 | 11.4 | 6.2 | 5500 | 3 | |
M5 | 1.5 | 2 | 7 | 6.98 | 0.9 | 9 | 1 | 11.3 | 7.9 | 8000 | 6 |
2 | 3 | 7 | 6.98 | 0.9 | 9 | 1 | 12.3 | 7.8 | 8000 | 6 | |
3 | 4 | 7 | 6.98 | 0.9 | 9 | 1 | 13.4 | 7.8 | 8000 | 6 | |
M6 | 1.5 | 3 | 9 | 8.98 | 0.9 | 11 | 1 | 13.3 | 8.6 | 13000 | 10 |
3 | 4 | 9 | 8.98 | 0.9 | 11 | 1 | 14.3 | 8.5 | 13000 | 10 | |
4 | 5 | 9 | 8.98 | 0.9 | 11 | 1 | 15.4 | 8.5 | 13000 | 10 | |
5 | 6 | 9 | 8.98 | 0.9 | 11 | 1 | 16.5 | 8.5 | 13000 | 10 | |
M8 | 1.5 | 3 | 11 | 10.98 | 1.4 | 14 | 1.5 | 15.3 | 10.5 | 20000 | 24 |
3 | 4 | 11 | 10.98 | 1.4 | 14 | 1.5 | 16.3 | 10.5 | 20000 | 24 | |
4 | 5 | 11 | 10.98 | 1.4 | 14 | 1.5 | 17.4 | 10.5 | 20000 | 24 | |
5 | 6 | 11 | 10.98 | 1.4 | 14 | 1.5 | 18.5 | 10.5 | 20000 | 24 | |
M10 | 1.5 | 3 | 13 | 12.98 | 1.4 | 16 | 1.5 | 19.4 | 13.9 | 22000 | 48 |
3 | 4.5 | 13 | 12.98 | 1.4 | 16 | 1.5 | 21 | 13.9 | 22000 | 48 | |
4.5 | 6 | 13 | 12.98 | 1.4 | 16 | 1.5 | 22.6 | 13.9 | 22000 | 48 | |
