滾花圓身鉚螺母使兩個物料通過一個可承重的螺紋用螺栓緊密連接在一起。滾花豎紋使鉚接好的螺母防轉程度，較平滑圓柱有一定的提高。滾花圓柱鉚螺母有平頭和小沉頭等頭型，并有鋁、鐵、不銹鋼等材質的選擇。
低沉頭圓身滾花鉚接螺母鋼制開口
詳細介紹

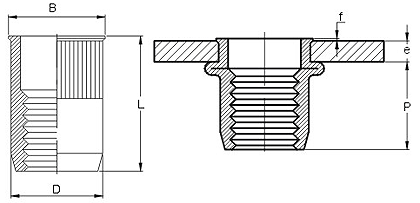

e |
| Dmax | B | f | L | P | Setting Load | Torque(N.m.) | ||
max | ||||||||||
M3 | 0.5 | 1.5 | 5 | 4.98 | 6 | 0.4 | 8.3 | 5.8 | 3500 | 1.2 |
1.5 | 3 | 5 | 4.98 | 6 | 0.4 | 9.8 | 5.7 | 3500 | 1.2 | |
M4 | 0.5 | 2.5 | 6 | 5.98 | 7 | 0.4 | 11.3 | 5.8 | 5600 | 3 |
2.5 | 4 | 6 | 5.98 | 7 | 0.4 | 11.9 | 5.9 | 5600 | 3 | |
M5 | 0.5 | 2.5 | 7 | 6.98 | 8 | 0.4 | 13 | 7.3 | 8500 | 6 |
2.5 | 4 | 7 | 6.98 | 8 | 0.4 | 13.8 | 7.6 | 8500 | 6 | |
M6 | 0.5 | 3 | 9 | 8.98 | 10 | 0.4 | 14.5 | 8 | 11000 | 10 |
3 | 4.5 | 9 | 8.98 | 10 | 0.4 | 15.3 | 8.6 | 11000 | 10 | |
4.5 | 6 | 9 | 8.98 | 10 | 0.4 | 16.9 | 8.6 | 11000 | 10 | |
M8 | 0.5 | 3 | 11 | 10.98 | 12 | 0.5 | 18 | 11 | 15000 | 24 |
3 | 4.5 | 11 | 10.98 | 12 | 0.5 | 18.9 | 12 | 15000 | 24 | |
4.5 | 6 | 11 | 10.98 | 12 | 0.5 | 20.5 | 12 | 15000 | 24 | |
M10 | 0.5 | 3 | 13 | 12.98 | 14 | 0.5 | 22 | 13.9 | 21000 | 48 |
3 | 4.5 | 13 | 12.98 | 14 | 0.5 | 21.9 | 14.3 | 21000 | 48 | |
4.5 | 6 | 13 | 12.98 | 14 | 0.5 | 23.5 | 14.3 | 21000 | 48 | |
