光身鉚螺母主要應用于很薄的板上的鉚接，對防轉的螺紋承載力要求不高的地方使用。鐵或不銹鋼材質建議用小沉頭；鋁質鉚螺母建議用平頭。
詳細介紹
e |

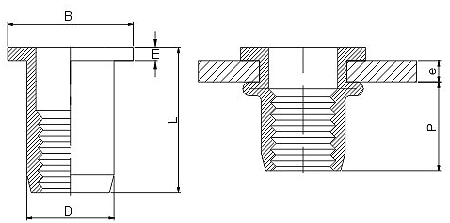

| Dmax. | B | E | L | P | Setting Load | Torque(N.m.) | ||
max | ||||||||||
M3 | 0.5 | 2 | 5 | 4.98 | 7.5 | 1 | 9 | 4.8 | 3500 | 1.2 |
2 | 3.5 | 5 | 4.98 | 7.5 | 1 | 10.5 | 4.8SPAN> | 3500 | 1.2 | |
3.5 | 5 | 5 | 4.98 | 7.5 | 1 | 12 | 4.8 | 3500 | 1.2 | |
M4 | 0.5 | 2 | 6 | 5.98 | 9 | 1 | 9.5 | 5.4 | 5500 | 3 |
2 | 3.5 | 6 | 5.98 | 9 | 1 | 12 | 5.4 | 5500 | 3 | |
3.5 | 5 | 6 | 5.98o:p> | 9 | 1 | 13.5 | 5.4 | 5500 | 3 | |
M5 | 0.5 | 3 | 7 | 6.98 | 10 | 1 | 14 | 8 | 8000 | 6 |
3 | 5.5 | 7 | 6.98 | 10 | 1 | 17 | 8 | 8000 | 6 | |
5.5 | 8 | 7 | 6.98 | 10 | 1 | 20 | 8 | 8000 | 6 | |
M6 | 0.5 | 3 | 9 | 8.98 | 13 | 1.5 | 16 | 10 | 12000 | 10 |
3 | 5.5 | 9 | 8.98 | 13 | 1.5 | 19 | 10 | 12000 | 10 | |
5.5 | 8 | 9 | 8.98 | 13 | 1.5 | 22 | 10 | 12000 | 10 | |
M8 | 0.5 | 3 | 11 | 10.98 | 16 | 1.5 | 18 | 11 | 18000 | 24 |
3 | 5.5 | 11 | 10.98 | 16 | 1.5 | 21 | 11 | 18000 | 24 | |
5.5 | 8 | 11 | 10.98 | 16 | 1.5 | 24 | 11 | 18000 | 24 | |
8 | 10.5 | 11 | 10.98 | 16 | 1.5 | 27 | 11 | 18000 | 24 | |
M10 | 1 | 3.5 | 13 | 12.98 | 19 | 2 | 23 | 15 | 22000 | 48 |
3.5 | 6 | 13 | 12.98 | 19 | 2 | 26 | 15 | 22000 | 48 | |
6 | 8.5 | 13 | 12.98 | 19 | 2 | 29 | 15 | 22000 | 48 | |
8.5 | 11 | 13 | 12.98 | 19 | 2 | 32 | 15 | 22000 | 48 | |
