光身鉚螺母主要應用于很薄的板上的鉚接，對防轉的螺紋承載力要求不高的地方使用。鐵或不銹鋼材質建議用小沉頭；鋁質鉚螺母建議用平頭。
詳細介紹

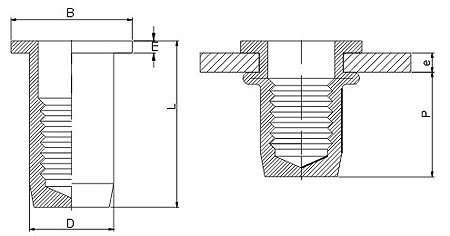

e | | Dmax | B | E | L | P | Setting Load | Torque(N.m.) | ||
max | ||||||||||
M4 | 0.5 | 2 | 6 | 5.98 | 8 | 1 | 11.8 | 15.7 | 5500 | 3 |
2 | 3.5 | 6 | 5.98 | 8 | 1 | 11.8 | 18 | 5500 | 3 | |
M5 | 0.5 | 2 | 7 | 6.98 | 9 | 1 | 14 | 18.6 | 8000 | 6 |
2 | 3 | 7 | 6.98 | 9 | 1 | 14 | 19.5 | 8000 | 6 | |
3 | 4 | 7 | 6.98 | 9 | 1 | 14 | 20.5 | 8000 | 6 | |
M6 | 0.5 | 1.5 | 9 | 8.98 | 12 | 1.5 | 16.5 | 21.5 | 13000 | 10 |
1.5 | 3 | 9 | 8.98 | 12 | 1.5 | 16.5 | 22.8 | 13000 | 10 | |
3 | 4.5 | 9 | 8.98 | 12 | 1.5 | 16.5 | 24.5 | 13000 | 10 | |
M8 | 0.5 | 1.5 | 11 | 10.98 | 14 | 1.5 | 20 | 24.5 | 2000 | 24 |
1.5 | 3 | 11 | 10.98 | 14 | 1.5 | 18 | 24.5 | 2000 | 24 | |
3 | 4.5 | 11 | 10.98 | 14 | 1.5 | 18 | 25.8 | 2000 | 24 | |
M10 | 0.5 | 3 | 13 | 12.98 | 16 | 2 | 26 | 32.5 | 22000 | 48 |
3 | 4.5 | 13 | 12.98 | 16 | 2 | 26 | 34 | 22000 | 48 | |
4.5 | 6 | 13 | 12.98 | 16 | 2 | 26 | 35.5 | 22000 | 48 | |
