光身鉚螺母主要應用于很薄的板上的鉚接，對防轉的螺紋承載力要求不高的地方使用。鐵或不銹鋼材質建議用小沉頭；鋁質鉚螺母建議用平頭。
詳細介紹

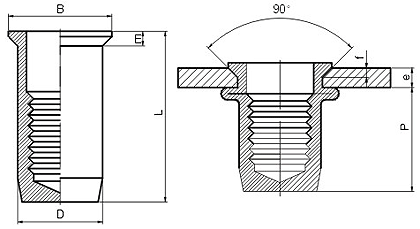

e | | Dmax | f | B | E | L | P | Setting Load | Torque(N.m.) | ||
max | |||||||||||
M3 | 1.5 | 3.5 | 5 | 4.98 | 1.3 | 7.2 | 1.4 | 14.1 | 9.5 | 1900 | 1.2 |
3.5 | 5 | 5 | 4.98 | 1.3 | 7.2 | 1.4 | 15.7 | 9.5 | 1900 | 1.2 | |
M4 | 1.5 | 3.5 | 6 | 5.98 | 1.3 | 8.2 | 1.4 | 16.3 | 11.5 | 3000 | 3 |
3.5 | 5 | 6 | 5.98 | 1.3 | 8.2 | 1.4 | 17.9 | 11.5 | 3000 | 3 | |
M5 | 1.5 | 4.5 | 7 | 6.98 | 1.5 | 9.6 | 1.6 | 19.4 | 13.5 | 3800 | 6 |
4.5 | 6.5 | 7 | 6.98 | 1.5 | 9.6 | 1.6 | 22 | 13.5 | 3800 | 6 | |
M6 | 1.5 | 4.5 | 9 | 8.98 | 1.5 | 11.7 | 1.6 | 23.6 | 17.4 | 5500 | 10 |
4.5 | 6.5 | 9 | 8.98 | 1.5 | 11.7 | 1.6 | 25.7 | 17.4 | 5500 | 10 | |
, | |||||||||||
M8 | 1.5 | 4.5 | 11 | 10.98 | 1.5 | 13.5 | 1.6 | 28.4 | 21 | 10000 | 24 |
4.5 | 6.5 | 11 | 10.98 | 1.5 | 13.5 | 1.6 | 30.5 | 21 | 10000 | 24 | |
M10 | 1.5 | 4.5 | 13 | 12.98 | 1.5 | 15.5 | 1.6 | 33.9 | 26.5 | 12000 | 48 |
4.5 | 6.5 | 13 | 12.98 | 1.5 | 15.5 | 1.6 | 36 | 26.5 | 12000 | 48 | |
